For most parts, transit damage is a tolerance question. For a Class-A surface, it is pass or fail. A painted body panel, a molded exterior component, a cosmetic fender: one scuff, one abrasion, one pressure mark, and the part is no longer sellable, even when it is structurally perfect. The surface is the product.
Protecting that surface in transit is a specialized packaging-engineering discipline. It comes down to custom dunnage that cradles the part at the right contact points, holds it in a fixed orientation so it cannot shift, and is validated under real transit conditions before the program ever scales. This guide covers what makes cosmetic and painted parts hard to protect, and how the right packaging keeps a Class-A surface Class-A from the line to the dock.
Key takeaways
- A Class-A surface is a visible, finished surface that has to arrive flawless. One scratch can reject the part.
- Painted and molded plastic parts are damaged mostly by contact and micro-movement during over-the-road transport.
- Cosmetic protection is engineered to the specific part, not bought off the shelf.
- In a returnable program, the same protection has to repeat on every trip, for the life of the packaging.
What is a Class-A surface, and why does it need special protection?
A Class-A surface is a visible, finished surface that has to reach the assembly line or the end customer without a mark. Painted body panels, molded-in-color trim, high-gloss fascia, chrome, and cosmetic fenders all fall into this category. Because the finish is what the buyer sees, the tolerance for damage is effectively zero.
That is what separates cosmetic protection from ordinary cushioning. Standard packaging has to keep a part intact. Class-A packaging has to keep the finish untouched. A part can be dimensionally perfect and still get scrapped over a single scuff, so the packaging is doing quality-control work, not just holding the part in a box.
Why do painted and molded parts get damaged in transit?
Cosmetic parts get damaged for three reasons that ordinary packaging never has to solve.
- The surface cannot be touched the wrong way. Painted and molded plastic surfaces mar, scuff, and abrade under exactly the kind of contact and micro-movement that happens during over-the-road transport. Protection has to hold the part firmly without rubbing it, which is a harder problem than it sounds. A liner that grips too hard can burnish a finish; one that grips too loosely lets the part move.
- The geometry varies, but the discipline does not. Consider fenders. Some are bigger, some smaller, some longer, some narrower. At the end of the day they are still fenders, and the cosmetic requirements to protect them in transit are understood across the family. The same logic carries across molded plastic and painted parts more broadly. The profiles change; the surface-protection thinking carries over.
- Mass and orientation work against you. Centers of gravity, part weight, and how the part is oriented in the pack all determine where protective contact lands and how the part behaves under vibration and shock. A part that sits wrong is a part that moves, and a part that moves is a part that gets marked.
How do you protect a Class-A surface in transit?
You protect it with custom dunnage engineered to the specific part, not with generic padding. Four principles carry most cosmetic-protection programs.
- Custom dunnage shaped to the part. The dunnage is designed and manufactured to fit the exact part, using die-cut plastic, die-cut foam, or molded foam depending on the surface and the load. It is shaped to cradle the part at the right contact points and hold it in a fixed orientation so it cannot slide into damage.
- Density and orientation engineered together. Part density is maximized so the pack ships efficiently, but never by trading away surface protection to fit one more part. The two are solved at the same time, not in sequence.

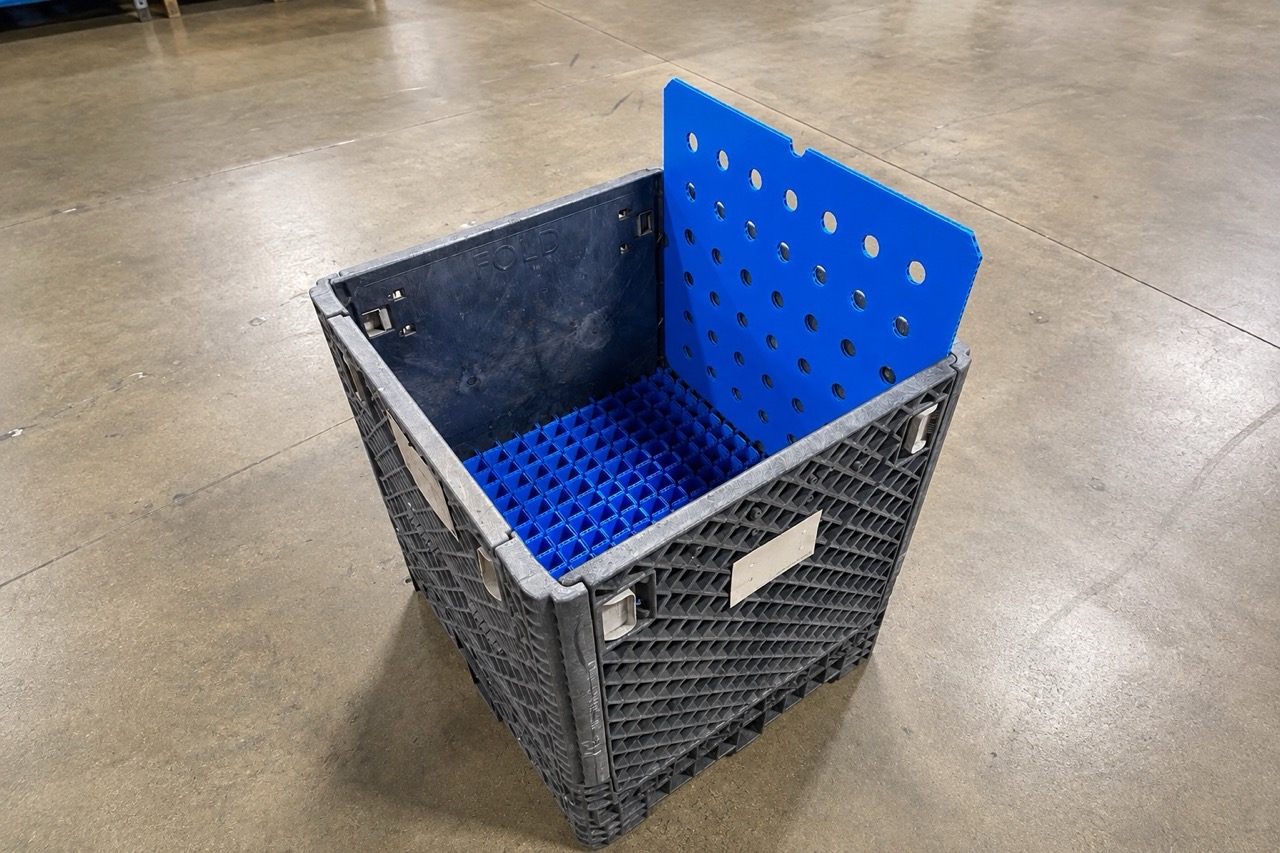

- Returnable packaging that repeats the protection. For an ongoing program, the custom dunnage is built into a returnable container designed around the part, so every trip delivers the same protection as the first. The finish is protected on trip one and on trip five hundred.
- Integrated multi-material builds where the part demands it. Some cosmetic parts are best protected by combining materials on a single carrier, for example molded expanded polypropylene (EPP), which PSI sources through a manufacturing partner, paired with thermoform trays and custom dunnage. The point is to match the material to the surface, not to force every part into the same foam.
The materials below cover most cosmetic-protection builds. The right one depends on the surface, the load, and the volume.
| Material | What it is | Best for |
|---|---|---|
| Die-cut plastic (plastic corrugated) | Plastic corrugated cut to a profile | Dividers, partitions, and structural dunnage |
| Die-cut foam | Foam cut to shape from sheet stock | Cushioning and non-marking contact across varied part shapes |
| Molded foam (EPP) | Expanded polypropylene molded to a precise profile, sourced through a manufacturing partner | High-volume parts that need an exact, repeatable fit |
| Nonwoven fabric | Soft, non-abrasive fabric dividers and liners | A non-marking surface held directly against a Class-A finish |
What is the difference between die-cut foam and molded foam for cosmetic parts?
The two most common cosmetic-protection foams differ on tooling, lead time, and how exact the fit is. Die-cut foam is cut to a profile from sheet stock. Molded foam, such as expanded polypropylene, is formed to a precise three-dimensional profile.
| Die-cut foam | Molded foam (e.g., EPP) | |
|---|---|---|
| How it is made | Cut to a profile from sheet stock | Formed to a precise three-dimensional profile |
| Tooling and lead time | Minimal tool cost, shorter lead time | Tooling costs more up front |
| Best fit | Lower volumes and parts with simpler contact surfaces; handles a wide range of shapes | High-volume cosmetic parts that need the same protection thousands of times over; exact and repeatable |
| Who makes it | PSI, in-house | Sourced through a manufacturing partner (EPP) |
PSI manufactures die-cut plastic and foam in-house and sources molded EPP through a manufacturing partner. The right choice depends on surface sensitivity, program volume, and how exact the fit has to be.
How is a cosmetic-protection design validated?
A cosmetic-protection design is not finished until a physical sample proves it under conditions that mirror what the part will actually face. PSI engineers and builds the sample. The customer or an independent lab then runs the validation, typically compression, drop, and vibration testing, along with real-world over-the-road testing.
If the sample marks a part, the design goes back to the board before anything scales. That is the point of validating early: catching a surface problem on one sample is inexpensive, and catching it after a full fleet of packaging is built is not.
Why work with a packaging engineer instead of off-the-shelf protection?
Off-the-shelf padding is designed to protect a box. A Class-A surface needs packaging designed around the part. That distinction is the whole job.
PSi has engineered cosmetic protection for painted and molded parts since 1994, across powersports, marine, outdoor power, and automotive Tier 1 supplier programs. Two of the people who lead this work hold four-year packaging degrees, in a field where returnable packaging itself is taught nowhere academically. That combination, a credentialed discipline applied to a problem most suppliers treat as padding, is what keeps a Class-A surface sellable from the line to the dock.
I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Frequently asked questions
What is a Class-A surface?
A Class-A surface is a visible, finished surface that must arrive flawless, such as a painted body panel, molded-in-color trim, chrome, or a high-gloss fascia. Because the finish is what the customer sees, a single scratch can reject an otherwise perfect part.
What causes cosmetic damage to parts during shipping?
Most cosmetic damage comes from contact and micro-movement during over-the-road transport. When a part shifts inside its packaging, or when a liner rubs the finish, the result is scuffing, marring, or pressure marks that fail a Class-A surface.
Can returnable packaging protect Class-A surfaces?
Yes. When custom dunnage is engineered into a returnable container designed around the part, the same cosmetic protection repeats on every trip. Returnable packaging is often the better long-term choice for cosmetic parts in a closed-loop program.
What materials protect painted and molded parts?
Common choices include die-cut plastic and molded components such as expanded polypropylene (EPP), plastic corrugated, and nonwoven fabric dividers. The right material depends on the surface, the load, and the program volume. PSi manufactures die-cut plastic and foam in-house and sources molded EPP through a manufacturing partner.
Is custom dunnage worth the cost for cosmetic parts?
For a Class-A surface, the alternative to custom dunnage is a rejected part, which carries rework, replacement, and freight costs of its own. Custom dunnage is engineered to hold the part without touching the finish, which is difficult to achieve with generic padding.
How is Class-A packaging tested?
PSi builds a physical sample, and the customer or an independent lab validates it through compression, drop, and vibration testing, plus real-world over-the-road testing. If the sample marks a part, the design is revised before the program scales.
Which industries need Class-A surface protection?
Powersports, marine, outdoor power equipment, and automotive Tier 1 suppliers all handle painted and molded parts that cannot tolerate contact damage in transit or on the line. Any program with cosmetic-sensitive parts benefits from engineered surface protection.
Does PSi make its own protective materials?
PSi designs and manufactures custom dunnage from die-cut plastic and foam in-house. Molded EPP foam is sourced through a manufacturing partner and integrated into the packaging PSi engineers and builds.
Protect the finish, not just the part
If a scratch rejects the part, the finish is the product, and the packaging has to be engineered for it. To talk through a cosmetic-protection program for your painted or molded parts, request information from PSi’s engineering team.
